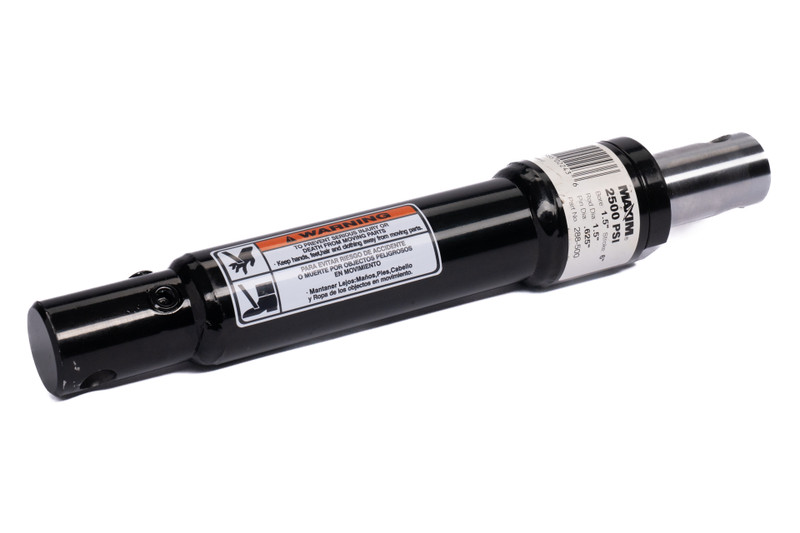

Description
- Pin holes at base and rod end
- Two 1/4 in. ports 90 degrees apart. One parallel to and one perpendicular to the pins in order to accommodate variable installation requirements
- Pin hole center is 11/16 in. from rod end
- Painted black
Specifications
Weight:
13.23 LBS
Bore:
1.5 in
Stroke:
12 in
PSI:
2500
Rod Dia.:
1.5 in
Pin Dia. :
1 in
Retracted:
19.38 in
Extended:
31.38 in
Port Size:
1/4 NPT
Column Load:
NA
