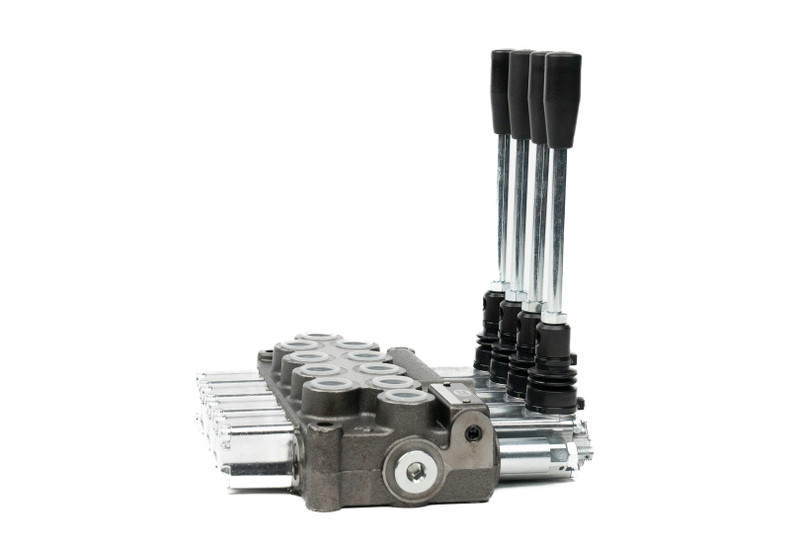

Description
• 12 GPM rating
• Mono-block valve featuring cast iron construction
• Anti-drop load check on each spool
• Stock adjustable relief from 900-2900 PSI
• Relief cartridges available for 580-1150 PSI or 2300-4600 PSI operation
• Power beyond and closed center plugs are available
• See accessories for optional relief cartridges, handles, and plugs.
• Mono-block valve featuring cast iron construction
• Anti-drop load check on each spool
• Stock adjustable relief from 900-2900 PSI
• Relief cartridges available for 580-1150 PSI or 2300-4600 PSI operation
• Power beyond and closed center plugs are available
• See accessories for optional relief cartridges, handles, and plugs.
Specifications
Weight:
18.00 LBS
PSI:
1740
Port Size:
SAE 8
GPM:
12
Inlet Port:
SAE 8
Outlet Port:
SAE 8
Max Temp:
176 F Max
No. of Spools:
4
Valving:
4-Way 3 Pos. Tandem Center
Voltage:
NA
AMPS:
NA
