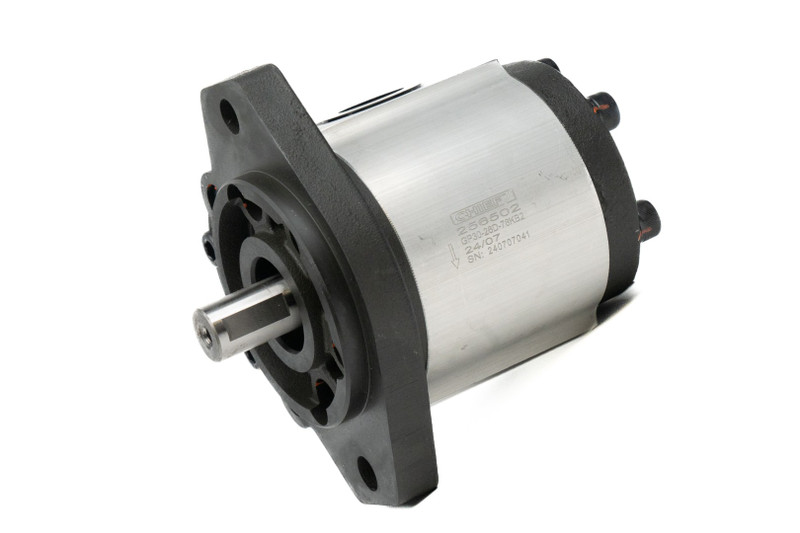

Chief Group 3 Gear Pump (3PG) - 1.57 CID (26CC), 7/8" Key Shaft, SAE-B 2-Bolt Mount, SAE-16/12 Ports, CW rotation

No reviews yet Write a Review
SKU:
256502
Chief Group 3 Gear Pump (3PG) - 1.57 CID (26CC), 7/8" Key Shaft, SAE-B 2-Bolt Mount, SAE-16/12 Ports, CW rotation
Note: Some images may be representative of product. Actual product appearance may vary.
MSRP:
$395.02
$296.27
You save $98.75
Constructed of an aluminum center housing and cast iron plates, model 3PG is a high-pressure hydraulic gear pump with seven displacement sizes from 1.34 to 3.66 in3/rev (22-60cm3/rev). The standard mounting flange is an SAE B - 2 bolt. View full description
Download Product Data Sheet (pdf)
Note: Some images may be representative of product. Actual product appearance may vary.

Description

Constructed of an aluminum center housing and cast-iron end plates, the Chief 3PG series is a high-pressure hydraulic gear pump with seven displacement sizes from 1.34 to 3.66 in3/rev (22-60cm3/rev). The standard mounting flange is SAE B—2 bolt, and the standard shaft is a 7/8" diameter straight with a 1/4" key. Additional shaft options are available.

The recommended working conditions are as follows:

  • Filtration: 25 microns or better
  • Oil Viscosity: 6 to 200 cSt
  • Ambient Temperature: -8 to 130° F (-22 to 55° C)
  • Oil Temperature: -12 to 175° F (-25 to 80° C)
  • Inlet pressure 12 to 32 PSI absolute

Specific model features:

  • Model code: GP30-26D-78KB2
  • CID: 1.57 (26 CC)
  • GPM: 11.4 @ 1800 RPM
  • RPM: 2000 (rated), 3500 (max)
  • PSI: 3625 (rated), 4060 (max)
  • Shaft: 7/8” Straight, 1/4” Key
  • Mounting flange: SAE B—2 bolt
  • Ports: SAE 16 /12
  • Rotation: Clockwise

Specifications

Weight:
11.70 LBS
PSI:
3625 (rated), 4060 (peak)
Cubic Inch Displ. (CID):
1.59
GPM:
11.4 (@1800 RPM)
RPM:
2000 (rated), 3000 (max)
Inlet Port:
SAE-16
Outlet Port:
SAE-12
Shaft:
7/8" Straight Key
Rotation:
Clockwise
