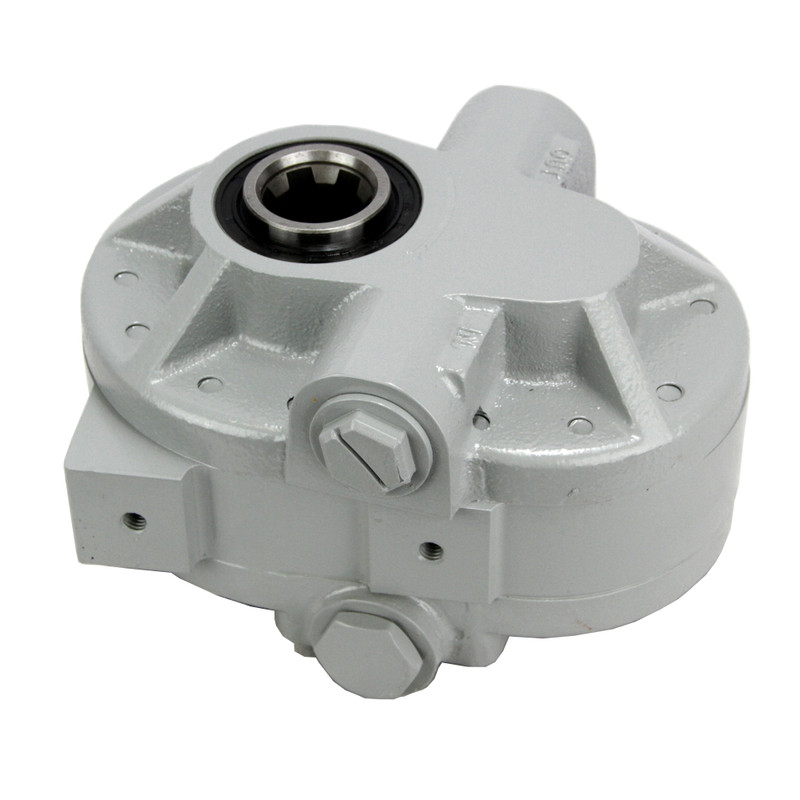

Chief PTO Hydraulic Gear Pump: 1 3/8 Dia. 21 GPM Max, 6 Tooth, 21 HP, 540 RPM

SKU: 252560
Chief
GPM:
21
Outlet Port:
SAE 12
PSI:
2500
Max Temp:
175 F
HP:
21
$795.73

Part is available on backorder.

Technical Documentation

Product Data Sheet

Product Description

Model GP-PTO is a Power Take Off gear pump constructed with cast iron end plates and an aluminum center section. It offers 4 displacement sizes from 3.41 to 9.76 in3/rev 56-160 cm3/rev. Standard drive is 1 3/8” diameter 6-Tooth female spline or 1 3/8" diameter 21-Tooth female spline.

Specifications

GPM
21
Outlet Port
SAE 12
PSI
2500
Max Temp
175 F
HP
21
RPM
540
Weight
43 lb
C.I.D.
9.76
Pressure Port Size
SAE 16
Brand
Chief
Type
Inventory Item

Technical Documentation

Product Data Sheet

Product Description

Model GP-PTO is a Power Take Off gear pump constructed with cast iron end plates and an aluminum center section. It offers 4 displacement sizes from 3.41 to 9.76 in3/rev 56-160 cm3/rev. Standard drive is 1 3/8” diameter 6-Tooth female spline or 1 3/8" diameter 21-Tooth female spline.
