Chief Single Acting, Inverted Telescopic Cylinder: 3-Stage, 12-Ton, 108" Stroke

No reviews yet Write a Review
SKU:
210805
Chief Single Acting, Inverted Telescopic Cylinder: 3-Stage, 12-Ton, 108" Stroke

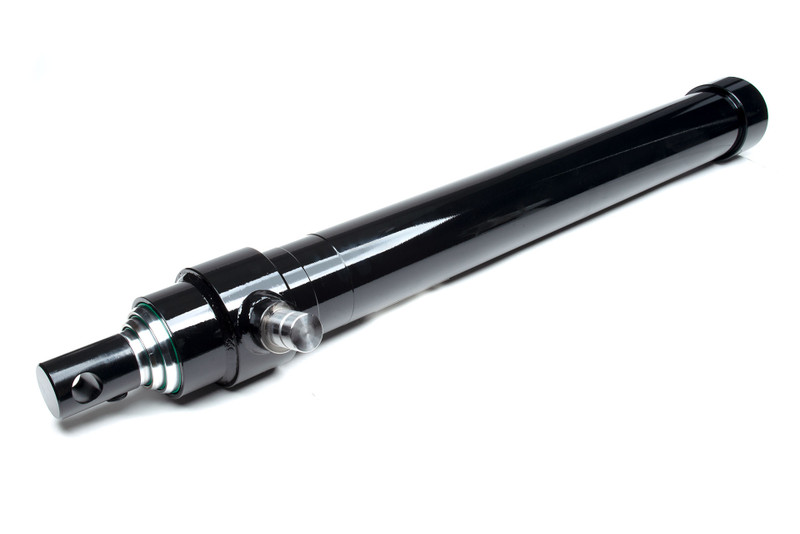

Note: Some images may be representative of product. Actual product appearance may vary.
MSRP:
$1,308.80
$981.60
You save $327.20
Designed for dump trailers, the Chief Telescopic Cylinder delivers powerful lift in a compact profile. Featuring multi-stage action and trunnion mounts for flexibility, it maximizes stroke and efficiency in tight spaces. View full description
Note: Some images may be representative of product. Actual product appearance may vary.

Description

This 3-stage, 12-ton, 108" stroke Chief® telescopic cylinder is engineered for inverted, single-acting dump trailers. The multiple stages in this telescopic cylinder provide longer stroke lengths in a smaller overall cylinder profile, which allows for great lift and mechanical advantage when used in dumping applications.

  • Multiple stages enable longer strokes to be achieved using less space.
  • Trunnion mounts with angular swivels to allow a small amount of misalignment.
  • Painted black. Custom options are available.

Specifications

Weight:
145.00 LBS
PSI:
2500
Stroke:
108"
Rod Diameter:
2"
Pin Diameter:
1"
Retracted Length:
7"
Extended Length:
115.0"
Stages:
3
In/Out Port Size:
SAE 8
