Description

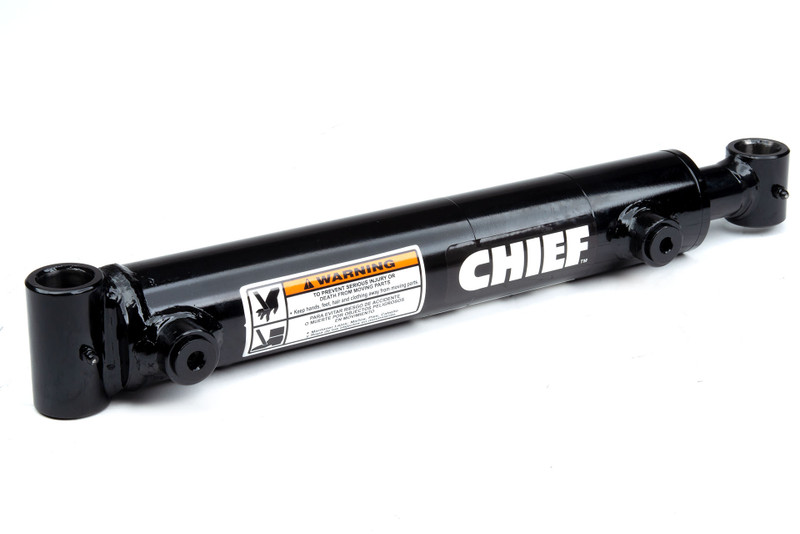

This 2 in bore x 14 in stroke Chief WT Welded Cross-Tube Hydraulic Cylinder is Bailey International's strongest cylinder, designed for heavier loads. The WT features a heavy duty piston with stem, complete with wear rings to reduce friction. These cylinders are ideally suited for construction, agricultural applications, metal fabricating, waste/recycling and OEM trailer manufacturing.
Specifications
Weight:
20.00 LBS
Bore:
2 in
Stroke:
14 in
PSI:
3000
Rod Dia.:
1.25 in
Pin Dia. :
.75 in
Retracted:
21 in
Extended:
35 in
Port Size:
SAE 8
Column Load:
9420 lbs
