Description

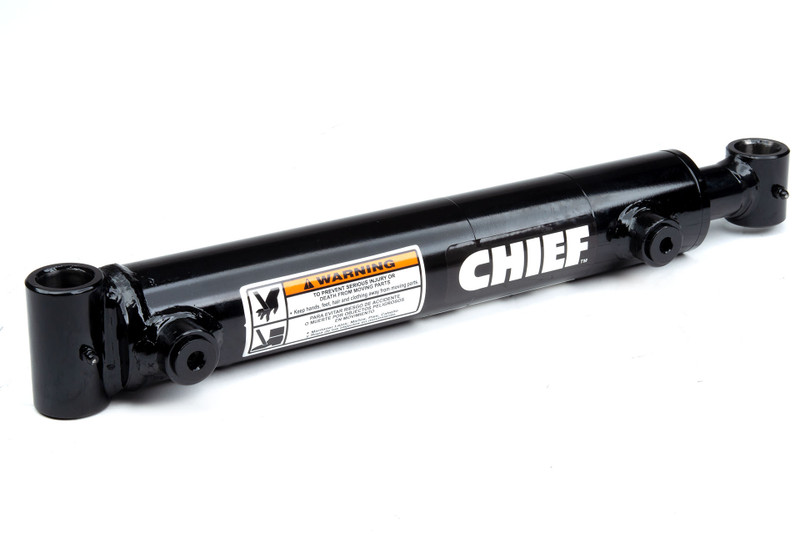

This 3 in bore x 20 in stroke Chief WT Welded Cross-Tube Hydraulic Cylinder is Bailey International's strongest cylinder, designed for heavier loads. The WT features a heavy duty piston with stem, complete with wear rings to reduce friction. These cylinders are ideally suited for construction, agricultural applications, metal fabricating, waste/recycling and OEM trailer manufacturing.
Specifications
Weight:
40.00 LBS
Bore:
3 in
Stroke:
20 in
PSI:
3000
Rod Dia.:
1.75 in
Pin Dia. :
1 in
Retracted:
28 in
Extended:
48 in
Port Size:
SAE 8
Column Load:
21200 lbs
