Description

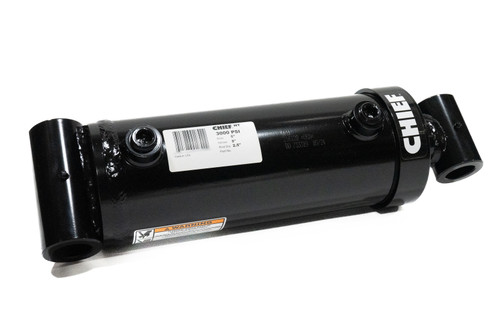

This 5 in bore x 16 in stroke Chief WT Welded Hydraulic Cylinder is our strongest welded cylinder, designed for heavier loads. The WT features a heavy duty piston with stem, complete with wear rings to reduce friction. These cylinders are ideally suited for construction, agricultural applications, metal fabricating, waste/recycling and OEM trailer manufacturing.
Specifications
Weight:
94.00 LBS
Bore:
5 in
Stroke:
16 in
PSI:
3000
Rod Dia.:
1.125 in
Pin Dia. :
1.5 in
Retracted:
27 in
Extended:
43 in
Port Size:
3/4 NPTF
Column Load:
58900 lbs
