Chief WT Welded Hydraulic Cylinder: 5 Bore x 54 Stroke - 2.5 Rod, SAE 12

2 reviews Write a Review
SKU:
216214
Chief WT Welded Hydraulic Cylinder: 5 Bore x 54 Stroke - 2.5 Rod, SAE 12
Note: Some images may be representative of product. Actual product appearance may vary.
MSRP:
$1,437.78
$1,121.47
You save $316.31
Download Product Data Sheet (pdf)
Experience durability with the Chief WT Cylinder. Built for heavy-duty tasks, it offers versatile port options, double-acting precision, and wear-resistant polyurethane U-cup gland seals. Backed by a 3-year warranty for worry-free performance. View full description
Note: Some images may be representative of product. Actual product appearance may vary.

Out of Stock? Try one of these substitute products:

Description

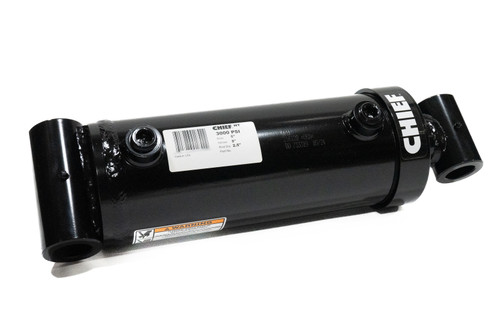

This 5 in bore x 54 in stroke Chief® WT Welded Hydraulic Cylinder is our strongest welded cylinder, designed for heavier loads. The WT features a heavy-duty piston with a stem, complete with wear rings to reduce friction. These cylinders are ideally suited for linear push and pull movements in construction, agricultural applications, metal fabricating, waste/recycling, and OEM trailer manufacturing. Featuring SAE 12 ports.

*On cylinder strokes of 48” and greater, spacers are added that increase the A dimension. At 48” stroke a 2” (50.8cc) spacer is added. Every other 6” of stroke a 1” (25.4mm) spacer is added. A Maximum length of spacers (added together) is 6” (152.4mm)

Specifications

Weight:
201.00 LBS
Bore:
5 in
Stroke:
54 in
PSI:
3000
Rod Dia.:
2.5 in
Pin Dia.:
1.5 in
Retracted:
68 in
Extended:
122 in
Column Load:
34586 lbs
