Description

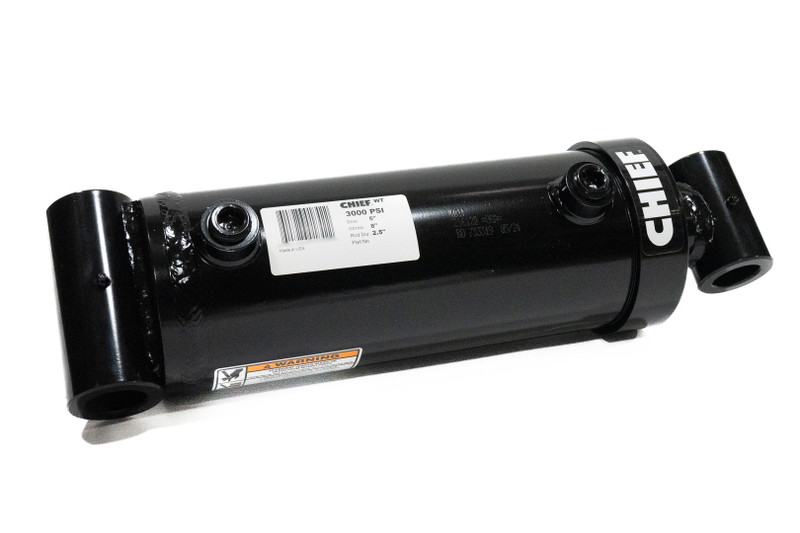

This 6 in bore x 40 in stroke Chief WT Welded Hydraulic Cylinder is our strongest welded cylinder, designed for heavier loads. The WT features a heavy duty piston with stem, complete with wear rings to reduce friction. These cylinders are ideally suited for construction, agricultural applications, metal fabricating, waste/recycling and OEM trailer manufacturing.
Specifications
Weight:
213.00 LBS
Bore:
6 in
Stroke:
40 in
PSI:
3000
Rod Dia.:
3 in
Pin Dia. :
1.5 in
Retracted:
51 in
Extended:
91 in
Port Size:
3/4 NPTF
Column Load:
84820 lbs
