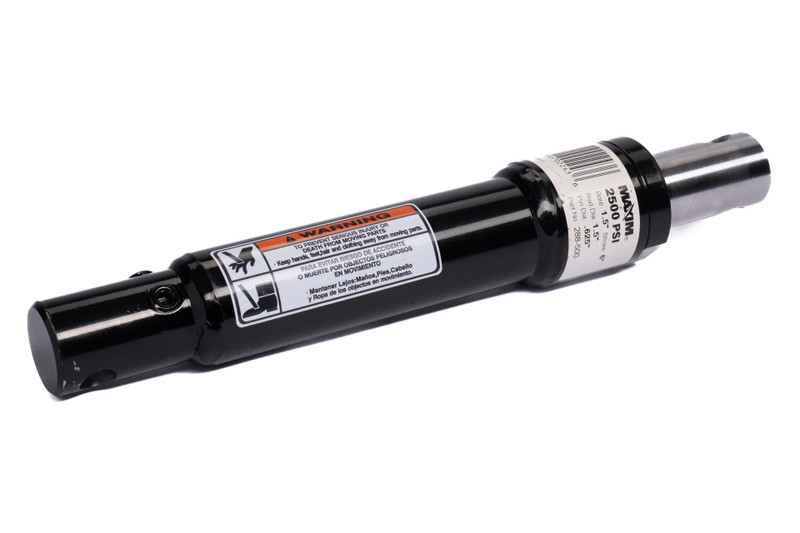

Single Acting Snowplow Hydraulic Cylinder: 2 Bore x 10 Stroke, 1.5 Rod, Artic

1 review Write a Review
SKU:
288506
Single Acting Snowplow Hydraulic Cylinder: 2 Bore x 10 Stroke, 1.5 Rod, Artic
Note: Some images may be representative of product. Actual product appearance may vary.
MSRP:
$196.81
$147.61
You save $49.20
Download Product Data Sheet (pdf)
Maxim Snowplow Cylinders deliver the power and precision you need for harsh winter work. With double ports for flexible setup and rugged construction for lasting performance, they're built to keep your snowplow running strong all season. View full description
Note: Some images may be representative of product. Actual product appearance may vary.

Description

  • Artic brand replacement
  • 1 inch pin holes at base and rod end
  • Two 1/4 in. ports 90 degrees apart. One parallel to and one perpendicular to the pins in order to accommodate variable installation requirements
  • 1 inch pin hole center is 11/16 in. from rod end
  • Painted black
  • These are displacement-type cylinders; use the rod diameter for force, load, and safety considerations.

Specifications

Brand:
Maxim
Weight:
13.45 LBS
Bore:
1.75 in
Stroke:
10 in
PSI:
2500
Rod Dia.:
1.5 in
Pin Dia. :
1 in
Retracted:
17.25 in
Extended:
27.25 in
Port Size:
1/4 NPT
Column Load:
NA
Rod Diameter:
1.5 in
Pin Diameter:
1 in
Retracted Length:
17.25 in
Extended Length:
27.25 in
Body OD:
2 in
Mounting:
Pin Eye
