Description

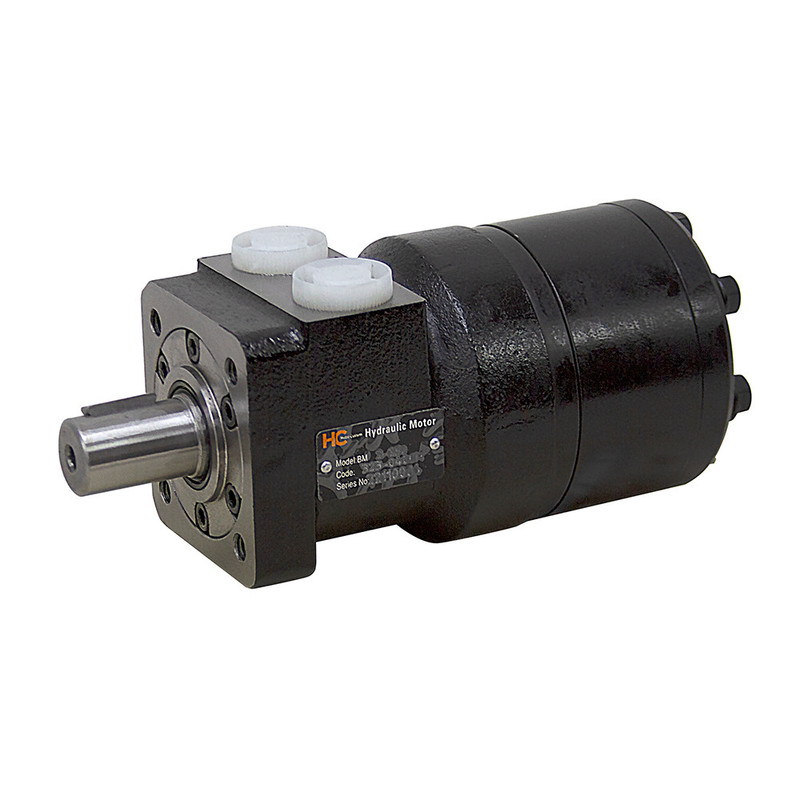

The BM2 hydraulic motor features a compact spool and gerolor gearset design that can bear higher pressure than the BM1 series. It provides smooth, precise control of shaft rotation and speed and is optimized for efficient performance in medium-load applications. This Hydro Custom BM2 Motor, rated at 13 GPM, 105 RPM, and 943 PSI has a 24.4 in3 displacement and 2417.9 lbs-in torque.
- Compact, lightweight design with spool and gerolor gearset for high power density
- The optimal operating condition is 1/3 to 2/3 of the continuous use values.
- Smooth and precise speed control for reliable operation
- Standard shaft seals rated at 1,085 PSI standard, 2900 PSI HPSS
- Standard shaft seals and bearings are not recommended for applications that may experience side-loadings.
- Optimized efficiency for medium-load, continuous-duty applications
- Case drain capability to protect seals and extend motor life
- Internal check valves for smoother directional control
- Standard clockwise rotation (facing shaft) when port A is pressurized
Full BM2 Specifications
- Output Shaft: 1” Straight, Woodruff Key
- Radial Shaft Load: 440 lbs. (200 kg); 881 lbs. (400 kg) with radial bearing
- Axial Shaft Load: 330 lbs. (150 kg); 440 lbs. (200 kg) with radial bearing
- Shaft Seal Rating: 1,085 PSI standard, 2900 PSI HPSS
- Rotation: Bi-rotational, clockwise preferred
- Temperature Rating: 100-120°F working, 176°F (80°C) max
- Port Configuration: Parallel
- Case Drain: SAE 4
Specifications
Brand:
Hydro Custom
Weight:
24.20 LBS
PSI:
943
Port Size:
SAE 10
CID:
24.4
GPM:
13
Mounting:
SAE AA 4 bolt, Square
RPM:
105
Shaft:
1” Straight Woodruff Key
Torque:
2417.9
