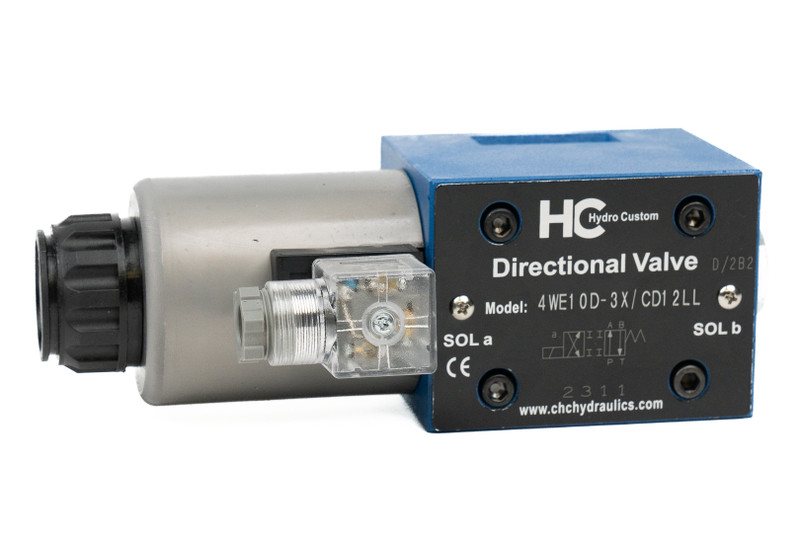

Cetop D05 (ISO NG10) Solenoid Operated Directional Valve - 12 VDC DIN, 4 way 2 position, Spring Return

No reviews yet Write a Review
SKU:
CUV 4WE10 D 3X/CD12 LL
Cetop D05 (ISO NG10) Solenoid Operated Directional Valve - 12 VDC DIN, 4 way 2 position, Spring Return
Note: Some images may be representative of product. Actual product appearance may vary.
MSRP:
$225.29
$168.97
You save $56.32
Note: Some images may be representative of product. Actual product appearance may vary.

Description

Hydro Custom CETOP D05 (ISO NG10) Solenoid Operated Directional Valves are a standard type of direct-acting solenoid and can be interchanged with many other CETOP and ISO valves in the market.

  • DC or AC wet-type solenoid with arbitrary rotation and includes a detachable coil. The coil can be replaced without oil.
  • Equipped with manual emergency operation push rod, bolt-kit, and DIN connectors with LED.
  • Installation area by DIN24 340 type A and CETOP-RP 121H.
  • UL and CE proof, CSA on demand.
  • Other spool models, voltage, and soft-shift valves are also available.
  • Voltage: 12 VDC DIN
  • Spool Action: Spring Return
  • Model: CUV 4WE10 D 3X/CD12 LL

Specifications

Brand:
Hydro Custom
Weight:
10.23 LBS
PSI:
Max: 4560 PSI; Max Backpressure: 2320 PSI
AMPS:
3.15
Voltage:
12 VDC DIN
Valving:
4 way 2 position
GPM:
26 @3600 PSI
Action:
Spring Return
Mounting:
CETOP 5
Circuit:
Parallel
