Description

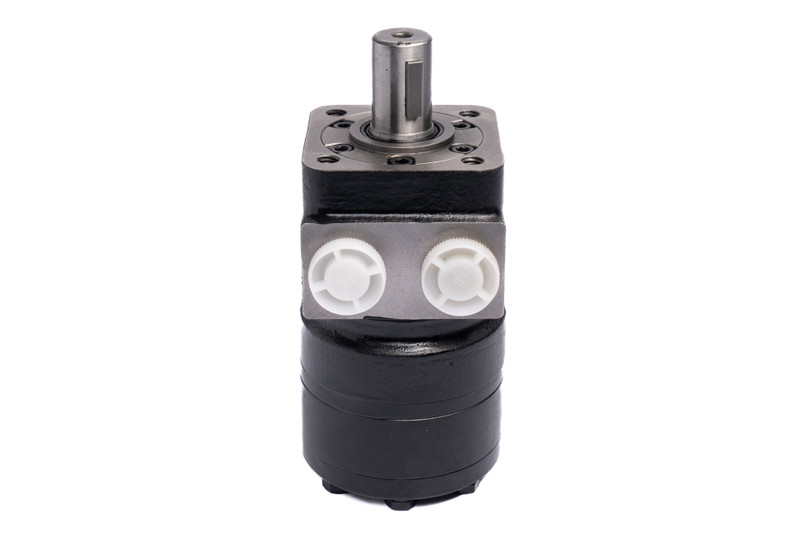

This Hydro Custom BM1 Motor, rated at 15 GPM, 280 RPM, 2030 PSI, and 2519 LBS-IN, has a 200 cc displacement, 1" Keyed Shaft, 1/2 NPT Port Size, and 4-Bolt Flange. The BM1 series hydraulic motor is a small volume, spool valve type motor with an optional side load-bearing design. Available in H series Eaton and S series Danfoss ports. High-pressure shaft seals up to 2,900 PSI are available.
- Compact design of spool and gear set that provides small volume, high power, and low weight
- Direction of shaft rotation and speed can be controlled easily and smoothly
- Best combination of efficiency and economy in medium load applications
- Standard shaft seals rated at 1,900 PSI
- High-pressure shaft seals up to 2,900 PSI, available upon request
Specifications
Brand:
Hydro Custom
Weight:
16.06 LBS
PSI:
435
Port Size:
1/2 NPT
CID:
12.2
GPM:
14
Inlet Port:
1/2 NPT
Outlet Port:
1/2 NPT
Length in Inches:
L - 1.46, L1 - 6.69, L2 - 6.89
Mounting:
4 bolt
RPM:
225
Shaft:
1” Straight Woodruff Key
Torque:
557.7
