Description

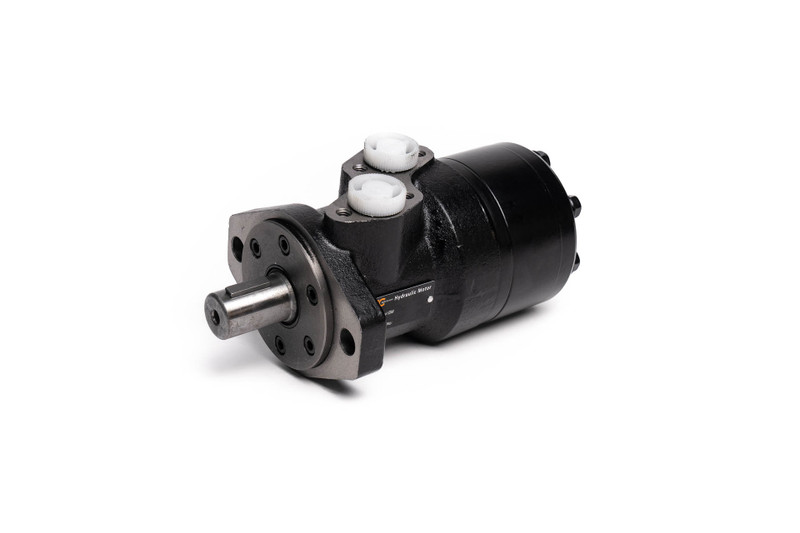

This BM2 Motor rated at 15.8 GPM, 110 RPM, 1160 PSI, and 5613 LBS-IN, has a 500 CC displacement, 1” Keyed Shaft, 1/2 NPT Port Size, and 2 Bolt Flange. The BM2 series hydraulic motor is a medium-volume, spool valve-type motor with an optional side load-bearing design. Available in H series Eaton and S series Danfoss ports. High-pressure shaft seals up to 2,900 PSI available. The BM2W series wheel motor has a recessed mounting flange with a radial bearing design, which can bear a more significant load. High-pressure shaft seals up to 2,900 PSI are available.
- Utilizes the hydraulic geroler motor design
- Higher efficiency than the BM1 motor series
- Shaft seal designed to bear higher pressures
- Can be used in series or parallel hydraulic circuit applications
- Shaft speed is easily controlled and operates smoothly
- Offers the best efficiency and economy in medium-load applications
- Standard shaft seals are rated at 1,987 PSI
- High-pressure shaft seals available up to 2,900 PSI
Specifications
Brand:
Hydro Custom
Weight:
26.40 LBS
PSI:
1160 cont., 1305 inst.
Port Size:
1/2 NPT
CID:
30.4 - 500 cc
GPM:
15.8 cont., 20 inst.
Inlet Port:
1/2 NPT
Outlet Port:
1/2 NPT
Length in Inches:
L - 3.54, L1 - 8.94, L2 - 9.134, L3: 9.37
Mounting:
2 bolt
RPM:
110 cont., 128 inst.
Shaft:
1 in. Straight Key
Torque:
5613 cont., 6674 inst.
