Hydro Custom BM5 Hydraulic Motor - 4.8 (80) Displ., SAE 10 Ports, 1 1/4” Straight Shaft

No reviews yet Write a Review
SKU:
CUM 351-0571

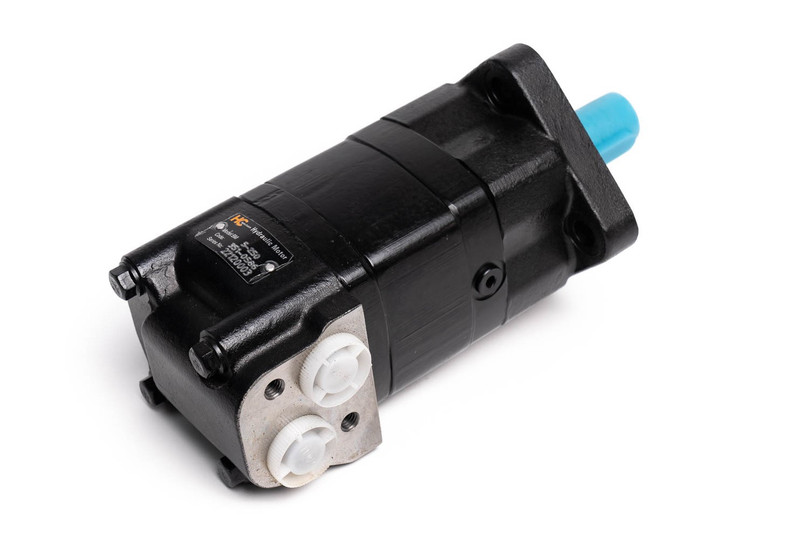

Hydro Custom BM5 Hydraulic Motor - 4.8 (80) Displ., SAE 10 Ports, 1 1/4” Straight Shaft
Note: Some images may be representative of product. Actual product appearance may vary.
$426.49
The BM5 series hydraulic motor is a large volume, disc valve, high-pressure motor with a radial ball-bearing design that can maintain a more significant load. The BM5S is a short motor design without bearings for gearbox assembly applications. View full description
Note: Some images may be representative of product. Actual product appearance may vary.

Description

This Hydro Custom BM5 Motor, rated at 799 RPM, 2980 PSI, and 2033 LBS-IN, has a 80 CC displacement, 1-1/4" Keyed Shaft, and SAE-A 4 Bolt Flange. The BM5 series hydraulic motor is a large volume, disc valve, high-pressure motor with a radial ball-bearing design that can maintain a more significant load. High-pressure shaft seals up to 2,900 PSI are available. The BM5S is a short motor design without bearings for gearbox assembly applications.

  • Large volume, high pressure
  • Disc valve, radial bearing design
  • Operates efficiently at greater loads
  • High-pressure shaft seals available up to 2,900 PSI

Specifications

Weight:
22.00 LBS
PSI:
2980 cont., 4350 inst., 4350 peak
Port Size:
SAE 10
CID:
4.8 - 80 cc
GPM:
20 cont., 22 inst.
Inlet Port:
SAE 10
Outlet Port:
SAE 10
Length in Inches:
L - .59, L3 - 7.09
Mounting:
SAE-A 4 BOLT
RPM:
799 cont., 908 inst.
Shaft:
1 1/4 in. Straight
Torque:
2033 cont., 2555 inst., 2917 peak
