  • Hydro Custom BMT Hydraulic Motor - 30.4 (500) Displ., SAE-12 Port, 1-1/2” Straight Key Shaft, SAE-C 4-Bolt Flange

Hydro Custom BMT Hydraulic Motor - 30.4 (500) Displ., SAE-12 Port, 1-1/2” Straight Key Shaft, SAE-C 4-Bolt Flange

No reviews yet Write a Review
SKU:
CUM 370-0144
Hydro Custom BMT Hydraulic Motor - 30.4 (500) Displ., SAE-12 Port, 1-1/2” Straight Key Shaft, SAE-C 4-Bolt Flange

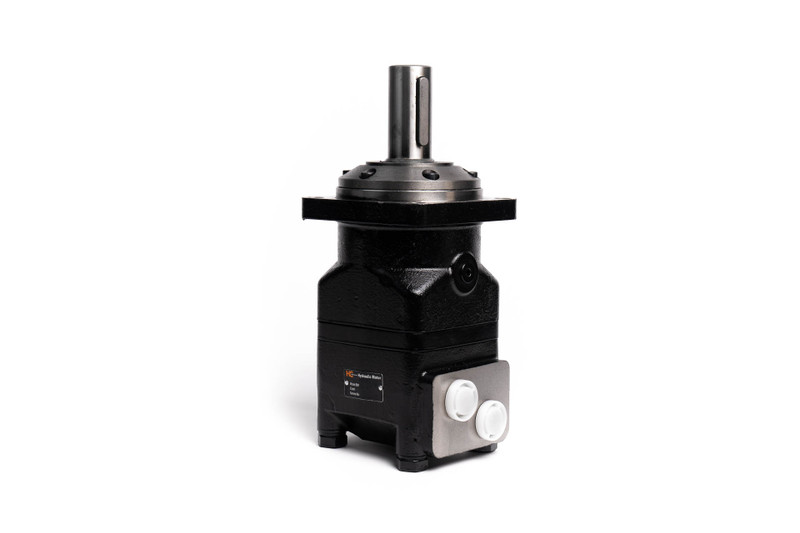

Note: Some images may be representative of product. Actual product appearance may vary.
$857.47
The BMT is a high-pressure, high torque motor with radial bearings. Advanced disc distribution flow and automatic wear compensation ensure high volumetric efficiency, while double taper roller bearings support heavy vehicle traction applications. View full description
Note: Some images may be representative of product. Actual product appearance may vary.

Description

This Hydro Custom BMT Motor, rated at 237 RPM, 2320 PSI, and 11020 LBS-IN, has a 500 CC displacement, 1-1/2" Keyed Shaft, and SAE-C 4-Bolt Flange. The BMT is a large volume, disc valve, high-pressure motor with a radial ball-bearing design that can maintain a more significant load.

  • Large volume, high pressure and high torque
  • Disc valve, radial bearing design
  • Improved performance at lower speeds
  • Double taper roller bearings permit high radial loads
  • Can be used on heavier vehicles in traction drive applications

Specifications

Weight:
50.60 LBS
PSI:
2320 cont., 2610 inst.
Port Size:
SAE-12
CID:
30.4 - 500 cc
GPM:
33 cont., 40 inst.
Inlet Port:
SAE-12
Outlet Port:
SAE-12
Length in Inches:
9.17
Mounting:
SAE-C 4-Bolt
RPM:
237 cont., 284 inst.
Shaft:
1-1/2 in. Straight Key
Torque:
11020 cont., 12471 inst.
