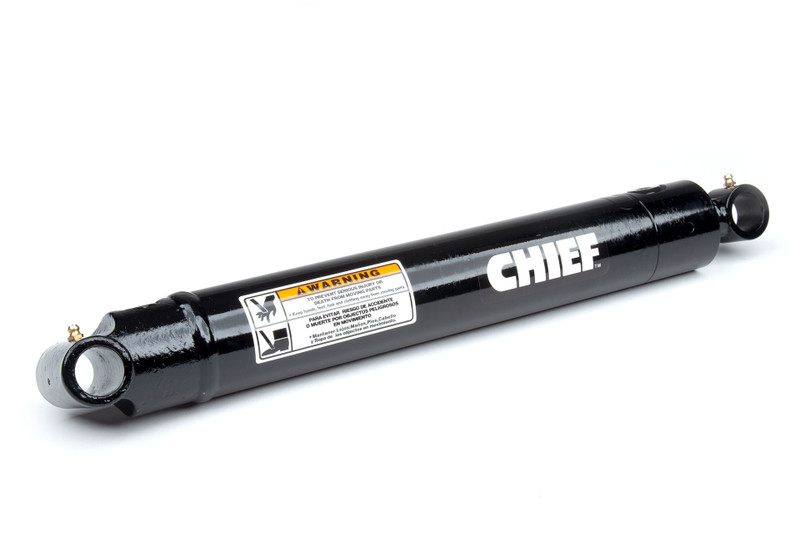

Chief WX Welded Hydraulic Cylinder: 3.5 Bore x 48 Stroke - 1.75 Rod

3 reviews Write a Review
SKU:
207486
Chief WX Welded Hydraulic Cylinder: 3.5 Bore x 48 Stroke - 1.75 Rod
Note: Some images may be representative of product. Actual product appearance may vary.
MSRP:
$826.33
$644.54
You save $181.79
Download Product Data Sheet (pdf)
Engineered for tight spaces and maximum flexibility, the Chief WX Cylinder features a 360° rotating gland, recessed ports, and multiple mounting options. Built with durable components and premium seals for peak performance in any direction. View full description
Note: Some images may be representative of product. Actual product appearance may vary.

Out of Stock? Try one of these substitute products:

Description

This Chief® WX welded hydraulic cylinder, rated at 3000 PSI, has a 3.5 in. bore X 48 in. stroke and a 3-year limited warranty. The WX cylinder is ideal for applications where port adjustability and overall cylinder space is restricted. It features an adjustable 360° rotating gland with retaining ring design offering 2 base end ports for applications requiring a variety port positions.

*On cylinder strokes of 48” and greater, spacers are added that increase the A dimension. At 48” stroke a 2” (50.8cc) spacer is added. Every other 6” of stroke a 1” (25.4mm) spacer is added. A Maximum length of spacers (added together) is 6” (152.4mm)

Specifications

Weight:
90.00 LBS
Bore:
3.5 in
Stroke:
48 in
PSI:
3000
Rod Dia.:
1.75 in
Pin Dia. :
1 in
Retracted:
58 in
Extended:
106 in
Port Size:
SAE 8
Column Load:
9340 lbs

    3 Reviews

    • Posted by Dino on 19th Apr 2024

      4

      Hydraulic piston

      The only reason why I purchase these piston through Baily is because it's direct. My supplier buys through you. I just cut out the middle man. The sales dept are very pleasant and easy to deal with.

    • Posted by Paul Cartmill on 1st Mar 2024

      5

      Bailey Hyd Cylinder

      Reliable product

    • Posted by D. Houston on 11th Apr 2023

      5

      Replacement cylinders for old Edge grapple bucket.

      Fit perfectly on discontinued Edge grapple bucket.
