Hydro Custom BM5 Hydraulic Motor - 9.7 (160) Displ., SAE 10 Ports, 1 1/4” Straight Shaft

No reviews yet Write a Review
SKU:
CUM 351-0574

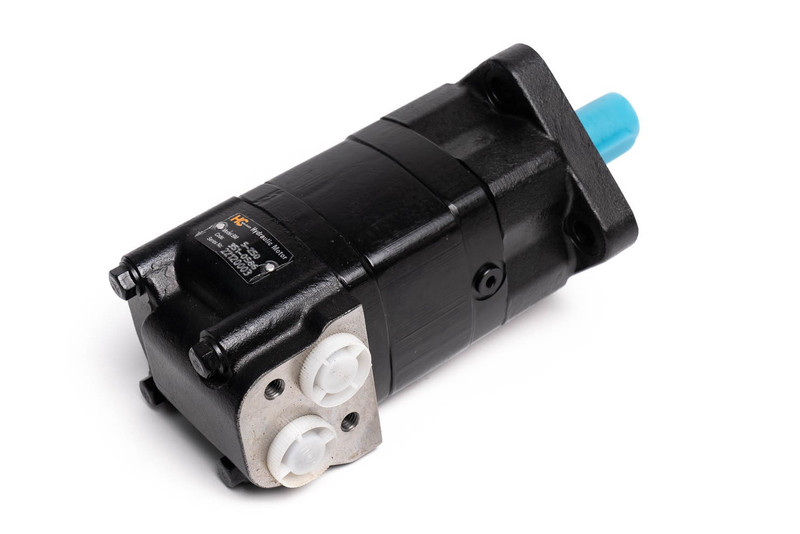

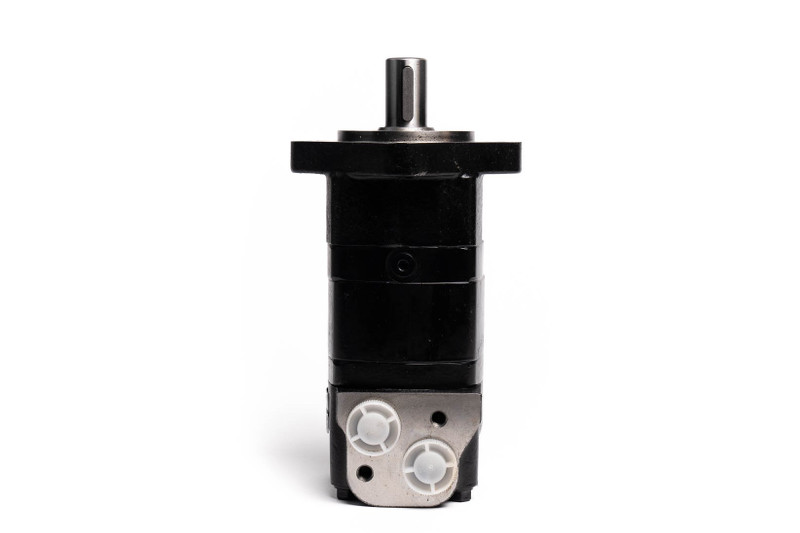

Hydro Custom BM5 Hydraulic Motor - 9.7 (160) Displ., SAE 10 Ports, 1 1/4” Straight Shaft
Note: Some images may be representative of product. Actual product appearance may vary.
MSRP:
$568.65
$426.49
You save $142.16
The BM5 series hydraulic motor is a large volume, disc valve, high-pressure motor with a radial ball-bearing design that can maintain a more significant load. The BM5S is a short motor design without bearings for gearbox assembly applications. View full description
Note: Some images may be representative of product. Actual product appearance may vary.

Description

This Hydro Custom BM5 Motor, rated at 460 RPM, 3045 PSI, and 4058 LBS-IN, has a 160 CC displacement, 1-1/4" Keyed Shaft, and SAE-A 4 Bolt Flange. The BM5 series hydraulic motor is a large volume, disc valve, high-pressure motor with a radial ball-bearing design that can maintain a more significant load. High-pressure shaft seals up to 2,900 PSI are available. The BM5S is a short motor design without bearings for gearbox assembly applications.

  • Large volume, high pressure
  • Disc valve, radial bearing design
  • Operates efficiently at greater loads
  • High-pressure shaft seals available up to 2,900 PSI

Specifications

Weight:
24.20 LBS
PSI:
3045 cont., 3770 inst., 4350 peak
Port Size:
SAE 10
CID:
9.7 - 160 cc
GPM:
20 cont., 30 inst.
Inlet Port:
SAE 10
Outlet Port:
SAE 10
Length in Inches:
L - 1.14, L3: 7.64
Mounting:
SAE-A 4 BOLT
RPM:
460 cont., 713 inst.
Shaft:
1 1/4 in. Straight
Torque:
4058 cont., 4685 inst., 4818 peak
