Description

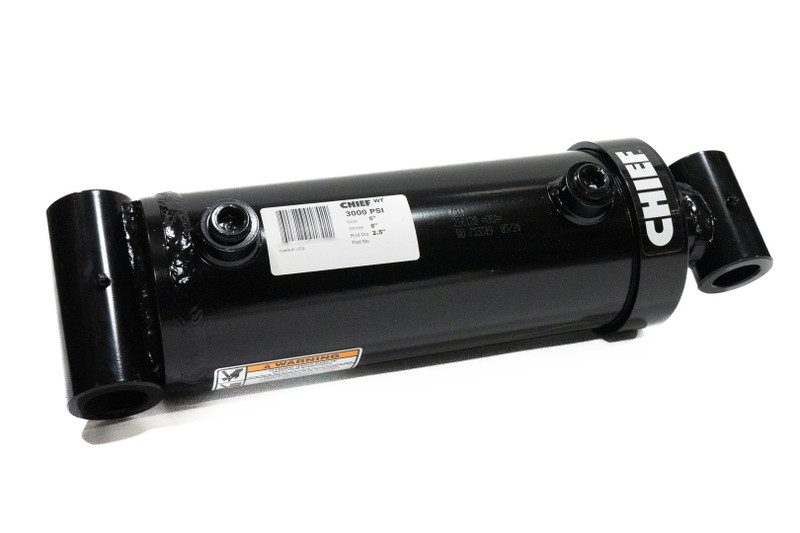

This 5 in bore x 10 in stroke Chief WT Welded Hydraulic Cylinder is our strongest welded cylinder, designed for heavier loads. The WT features a heavy-duty piston with a stem and wear rings to reduce friction. These cylinders are ideally suited for construction, agricultural applications, metal fabricating, waste/recycling, and OEM trailer manufacturing. Featuring SAE 12 ports.
Specifications
Weight:
78.50 LBS
Bore:
5 in
Stroke:
10 in
PSI:
3000
Rod Dia.:
2.5 in
Pin Dia.:
1.5 in
Retracted:
21 in
Extended:
31 in
Column Load:
58900 lbs
