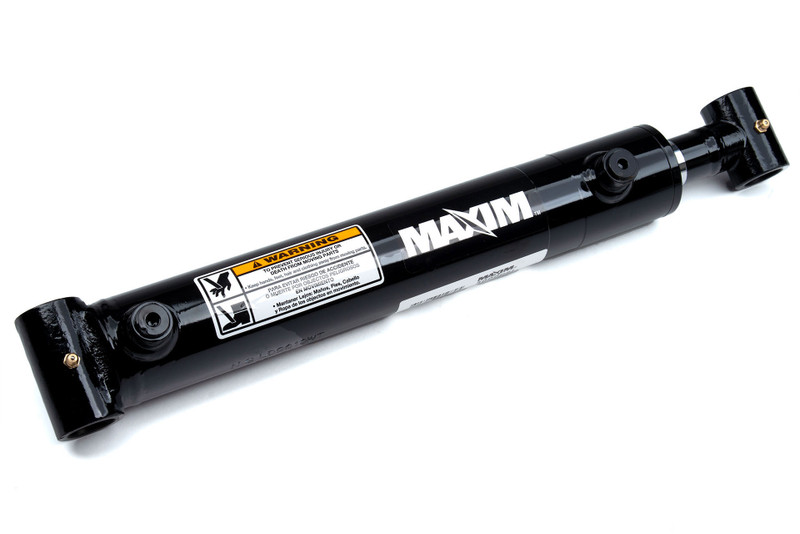

Maxim WT Welded Hydraulic Cylinder: 3.5 Bore x 14 Stroke - 1.75 Rod

No reviews yet Write a Review
SKU:
288353
$456.99
$342.75
You save $114.24
Whether you're in agriculture, construction, or manufacturing, Maxim WT cylinders exceed the highest standards, built to ensure maximum reliability and performance. With a compact design they are ideal for space-limited mobile applications. View full description

Description

This Maxim® WT welded hydraulic cylinder, rated at 3000 PSI, has a 3.5 in. bore X 14 in. stroke. The Maxim WT is Bailey’s best value cylinder with cross-tube mounting. Designed for demanding double-acting applications this welded cylinder exceeds the highest standards and is built to ensure maximum reliability and performance. With a compact design WT cylinders are also ideal for mobile applications where space is at a premium.

The Maxim WT is packed with these features:

  • Engineered with a robust ductile iron piston for unparalleled durability in demanding environments.
  • Enhanced security and stability ensured by the Grade 8 zinc-plated lock nut.
  • Reliable sealing mechanism featuring a nitrile O-ring with hytrel backup for consistent, leak-free performance.
  • Exceptional rod-sealing capabilities provided by the PolyPak design, incorporating a polyurethane U-cup with a Nitrile O-ring expander.
  • Sturdy steel cross tube mounts serve as reliable end mounts, ensuring stability and facilitating effortless installation for hydraulic systems.
  • Uncompromising seal integrity guaranteed by the piston's O-ring for its inner diameter and Hallite 755 piston seal with wear rings for the outer diameter.
  • Finished in a sleek black coating, not only enhancing its aesthetics but also offering protection against corrosion for long-lasting performance.

Specifications

Weight:
40.79 LBS
Bore:
3.5 in
Stroke:
14 in
PSI:
3000
Rod Dia.:
1.75 in
Pin Dia. :
1.25 in
Retracted:
24 in
Extended:
38 in
Port Size:
SAE 8
Column Load:
28860 lbs
