Description

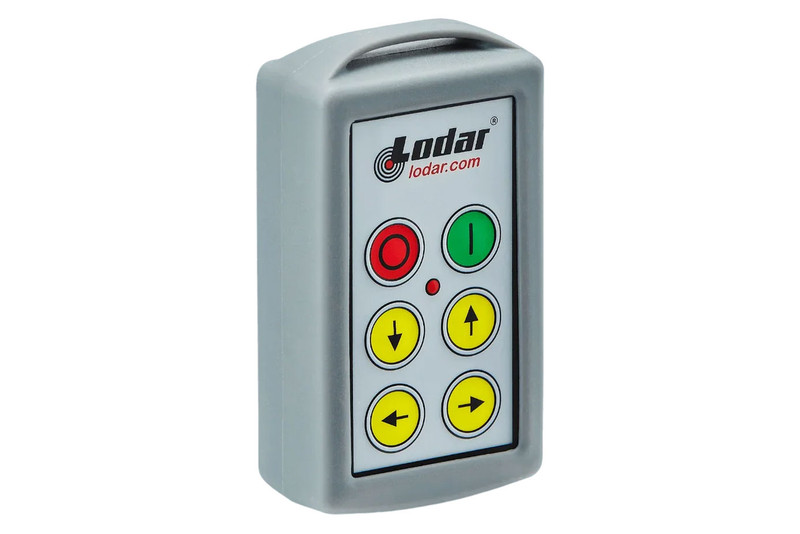

The Lodar Standard Transmitter (92104TX-8) is the designated handheld device for the Lodar 9 Series system, providing control over four functions to the receiver on your equipment. It features a 12 mm dome keypad with label pockets, holds an IP54 rating, operates on 2× AAA batteries, and offers a 200 ft (61 m) operating range.
Compatibility with Your Receiver
To ensure compatibility, verify the following three aspects: the series (9 Series), the function count (4), and the specific receiver it was coded to. Transmitters and receivers must operate on the same RF band, so always replace a 9 Series transmitter with another 9 Series transmitter. If replacing a lost or damaged handset, confirm the receiver model before placing your order.
- Controls 4 functions
- Standard transmitter with 12 mm dome keypad and label pockets
- IP54 rated, operational between 13°F to 104°F (-10°C to 40°C)
- Powered by 2× AAA batteries
- 200 ft (61 m) operating range
- Lodar SKU: 92104TX-8
Specifications
Brand:
Pierce
Weight:
1.00 LBS
